high pressure multistage pumps multistage centrifugal pump multistage centrifugal pump 2500 litres per minute

Specifications

1.Multistage centrifugal
2.Inlet and outlet are both at horizontal
3.small vibration

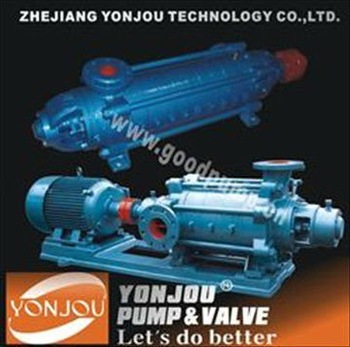

 high pressure multistage pumps

>>> Internal Structure  (Packing seal or Mechanical seal)


• TSWA Multi-stage Centrifugal Electric Water Pump is developed according to our national public security's regulation for the field of high building and fire fighting.

• It is suitable for conveying water or physical and chemical properties similar to the other liquid water, also for mine drainage and factory building, city water supply, etc.

>>> Main Material

• Casing: HT200, SS304, SS316

• Impeller:  SS304, SS316, Copper, HT200

>>> Features

• Compact and reasonable structure

• Shaft seal can be mechanical seal or packing seal

• Advanced hydraulic model to feature high efficiency and little energy consumption

• Single stage coupling structure: operation performance is high rotary speed, low noise, quick suction

• Adopt energy saving water conservancy model.

 >>> Specifications

• Flow Rate: 3.75~650m3/h

• Head: 19~700m

• Driven way: Electrical Motor, Diesel Engine



• Diesel Engine Brand: CUMMINS, DAEWOO, VOLVO, MAN, PERKINS, MITSUBISHI,JOHN DEERE, DEUTZ, MTU, CATERPILLER, YAMAHA, IMC, IVECO

>>> Different Types

• Type D is used in urban project for delivering clear water without solid particles or other liquids which are  physically or chemically similar to clear water. The temperature < 80 °C.

• Type DM is used in mine to deliver water with solid particles below 1.5% (viscosity less than 0.5mm) and other sewage. It is suitable for using in steel factory and mine etc. The temperature < 80°C.

• Type DF is used for delivering corrosive liquids without solid particles. The temperature: -20 °C ~105 °C.

• Type DY is used for delivering oil and petroleum products without solid particles and viscosity below 120 centistokes, the inlet pressure of all above pumps is less than 0.6Mpa. The temperature: -20 °C ~150 °C.

• Type DG is used for delivering heat water as boiler water circulating pump.Which is with top suction and discharge way.   The temperature: -20 °C ~120 °C.

>>> Application Area

• It is suitable for water supply and drainage in mines, factory, city emergency, hydrant, also is widely used in mine and other industry fields.

• Deliver heat water, oil, corrosive or wearable medium need change material of pumps.
